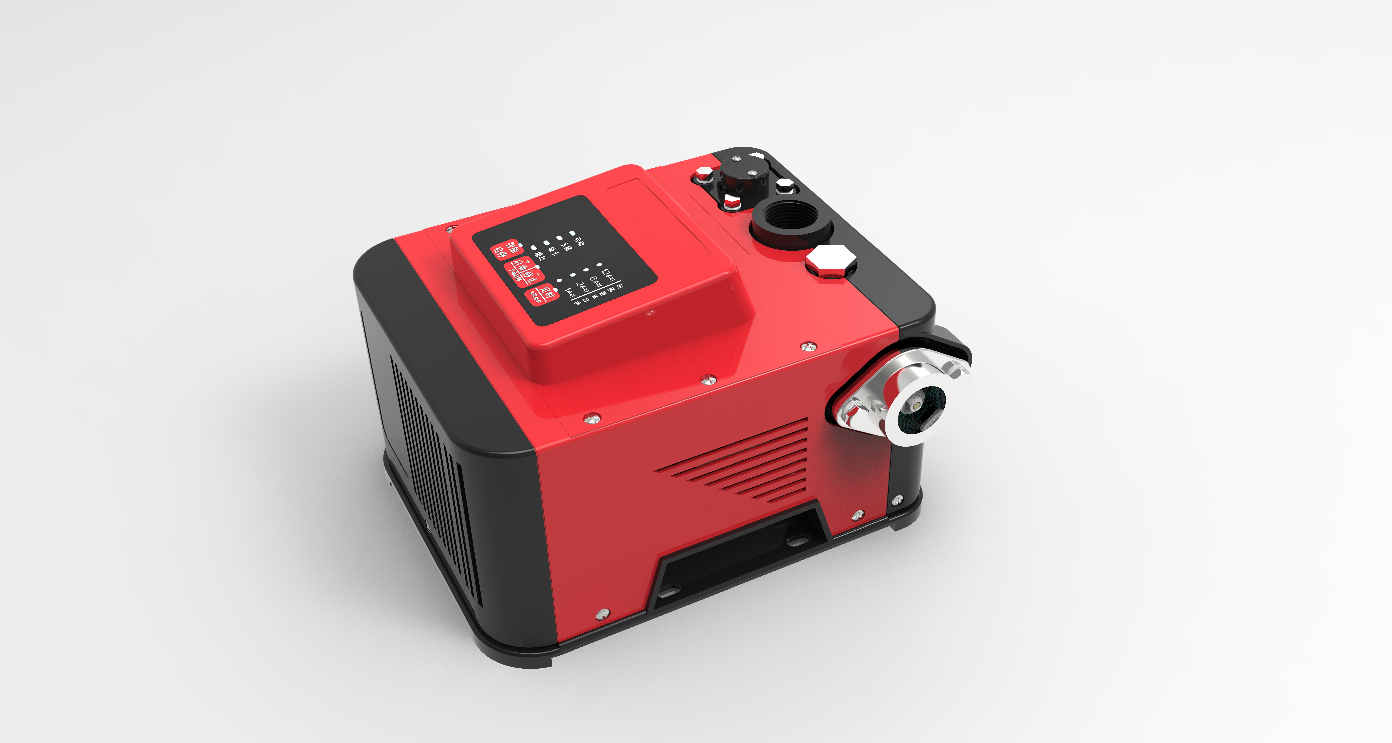

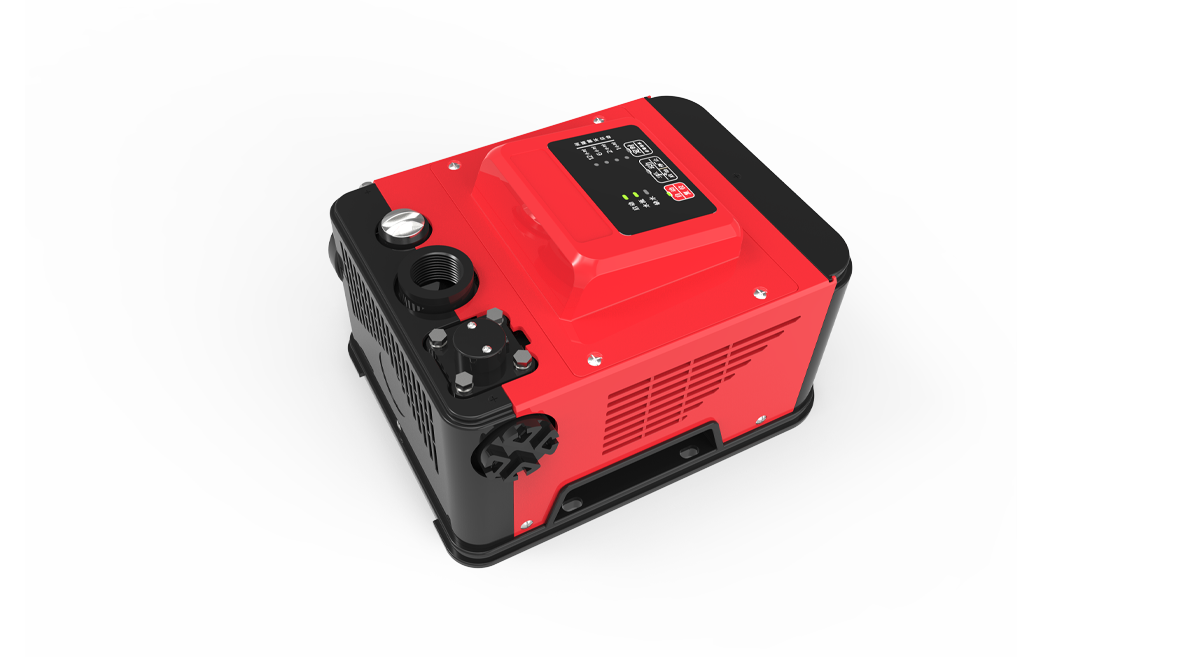

Classic type intelligent self-priming pump
Classic type intelligent self-priming pump
WORKING CONDITION
Max. liquid temperature | +100℃ |
Max. ambient temperature | +40℃ |
Max. suction | +8.5m |
Insulation | Class F |
Waterproof rating | IP44 |
Duty cycle | S1 |
Input voltage | Single phase, 220V, 50/60Hz |
MODEL INSTRUCTION
25JDWZB-128(A) |
25：Inlet&outlet diameter (mm) |
JD: Classic type |
WZB: Self-priming pump |
128: Power (W) |
A: Adaptive fucntion |

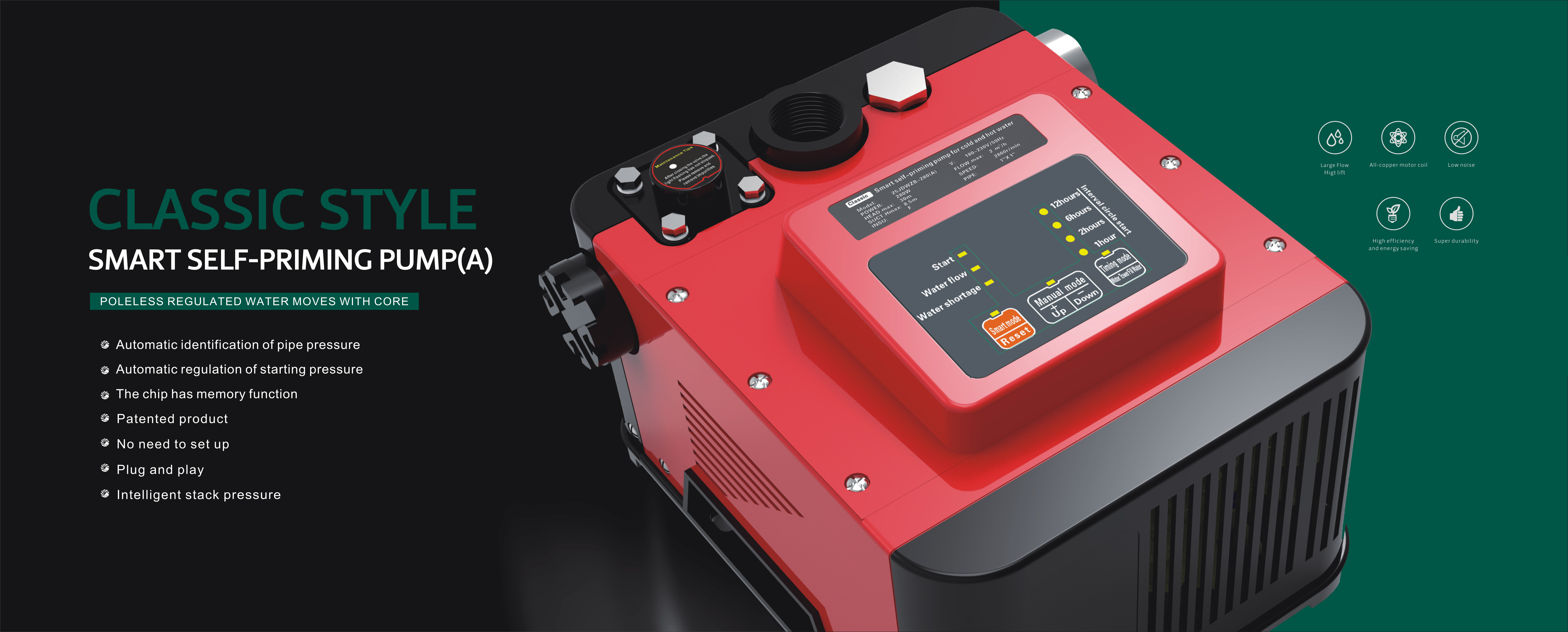

PRODUCT FEATURE
1, Adaptive function
Automatically identify the pipe pressure
Automatically regulate the starting pressure
2, Dual control system (pressure&flow switch)
Support stepless pressure regulation for pump with 0-100m head
3, Water shortage protection
4, Auto-start when tap water re-comes
5, Frequent start&stop protection
6, Thermal protection
7, Timing function (optional)
8, Electrophoresis, corrosion&rust resistant
9, Plug and play
10, Intelligent learning and memory function

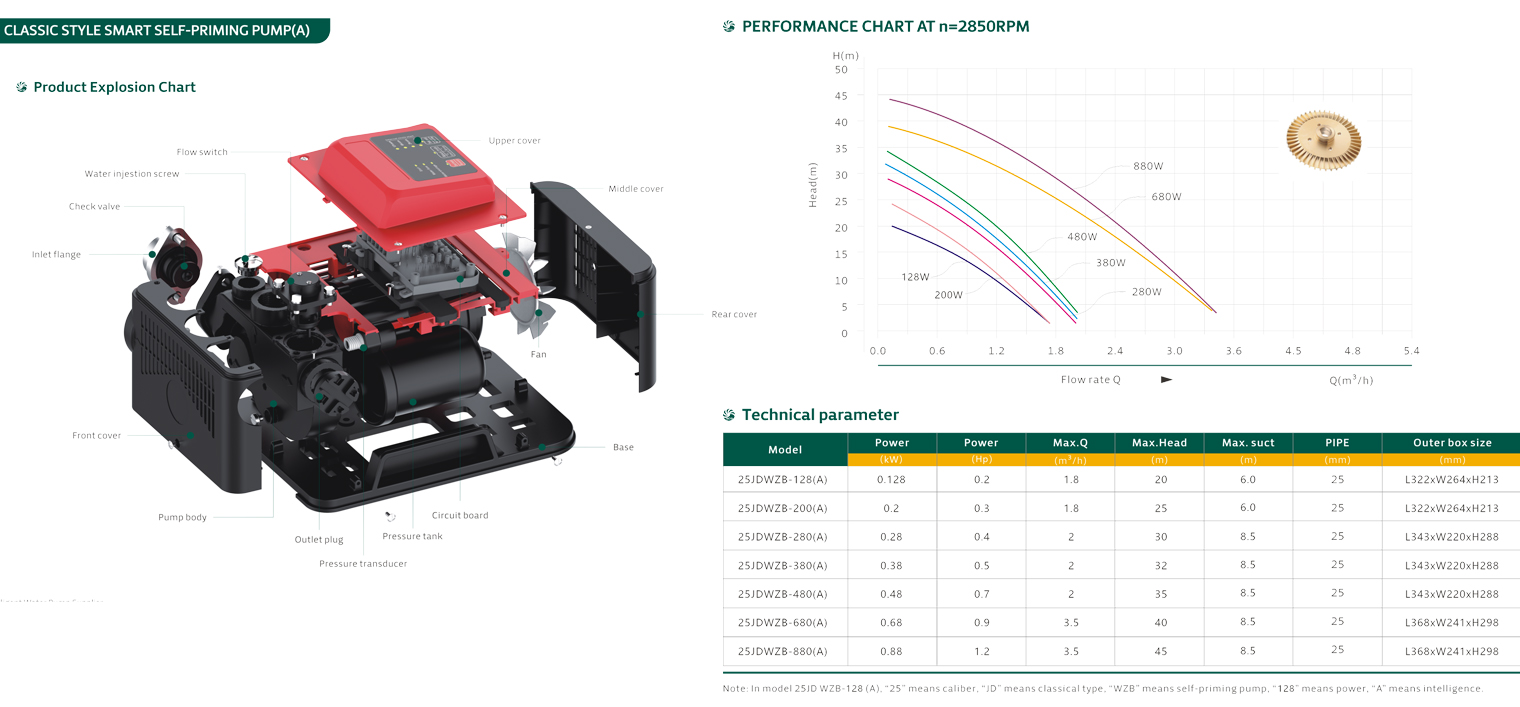

TECHNICAL PARAMETER (n=2850r/min)
Model | Power | Power | Max. flow | Max. flow | Max. head | Max. suction | Inlet&Outlet |
25JDWZB-128(A) | 128 | 0.2 | 1.8 | 30 | 20 | 6 | 1"×1" |
25JDWZB-200(A) | 200 | 0.3 | 1.8 | 30 | 25 | 6 | 1"×1" |
25JDWZB-280(A) | 280 | 0.4 | 2.0 | 33 | 30 | 8.5 | 1"×1" |
25JDWZB-380(A) | 380 | 0.5 | 2.0 | 33 | 32 | 8.5 | 1"×1" |
25JDWZB-480(A) | 480 | 0.7 | 2.0 | 33 | 35 | 8.5 | 1"×1" |
25JDWZB-680(A) | 680 | 0.9 | 3.5 | 58 | 40 | 8.5 | 1"×1" |
25JDWZB-880(A) | 880 | 1.2 | 3.5 | 58 | 45 | 8.5 | 1"×1" |
